Jukebox Pi [gav-pi19]

The thing with having all of my music on the server and being played via my home media centre is that whilst random tracks are okay at times, sometimes it's nice to select an album. I normally use a Music Player Client on my phone, which is fine... but any visitors might want easier access.

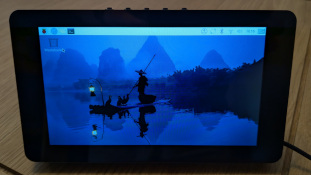

So, with a Raspbery Pi Zero 2 W, and a 7 inch touchscreen... how about a jukebox style interface?!

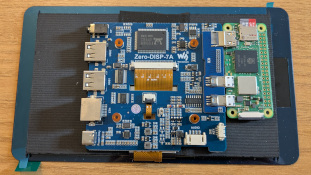

The board on the back of the touchscreen comes with a lot of features: Ethernet, USB ports, audio output (headphone jack and speaker header) - as well as the display at 5-point touchscreen!

Installation was simple:

1. Attach the Raspberry Pi Zero 2 W to the panel.
2. 3D print the enclosure.
3. Mount the panel into the enclosure.
4. Install Raspbian to a micro SD card.
5. Put the sd card in the Pi and boot up.
6. More instructions to follow... after I've got it working!
7. Reboot and hope it works!

Specifications

Case:	RPi Zero DISP 7A case
Board:	Rapsberry Pi Zero-2-W (version 1.0)
SoC:	Broadcom BCM2710A1 (Inside Raspberry Pi RP3A0 SiP) CPU: 64-bit Quad-core (ARM Cortex-A53, ARMv8-A arch) @ 1Ghz GPU: Broadcom VideoCore IV @ ??? MHz
RAM:	512MiBytes SDRAM
Storage:	Sandisk Ultra, class 10 (16GByte micro SDHC)
Display:	Waveshare Zero-DISP-7 (7-inch 1024x600, 5-point touchscreen)

---
